Built around the project configuration
**MAIN FEATURES of the Machine:**
**ENGINE**
- FIAT N67
- Power: 151 kW (202 HP)
- EU Stage V
**DRIVE**
- Independent hydrostatic dual-circuit electric drive
- Travel speed: 0-10 km/h (forward/reverse)
**TANK CAPACITY**
- Fuel tank: 389 l
- Cooling system: 29 l
- Engine oil: 14 l
- Hydraulic oil tank: 115 l
**DIMENSIONS**
- Operating weight: 18,830 kg
- Machine height: 3,180 mm
- Total machine length: 5,800 mm

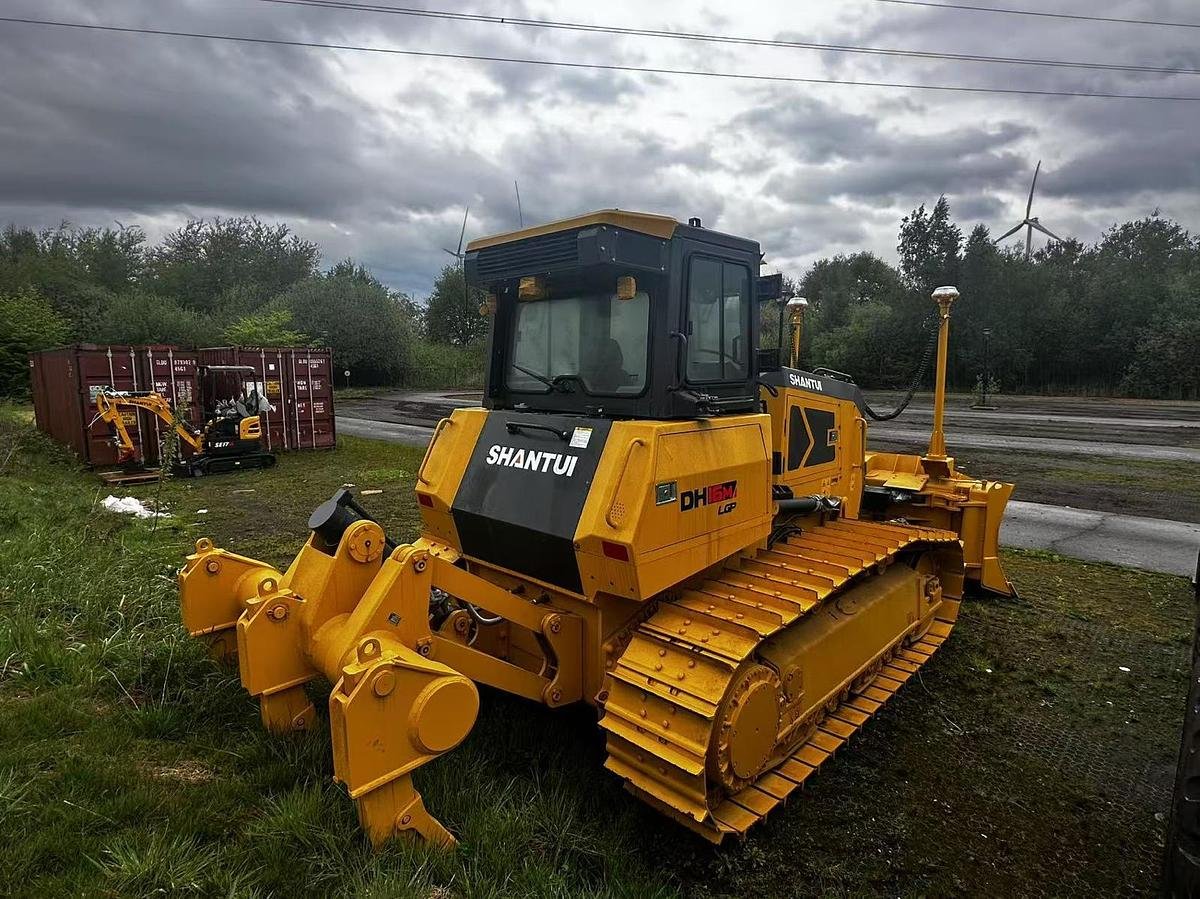

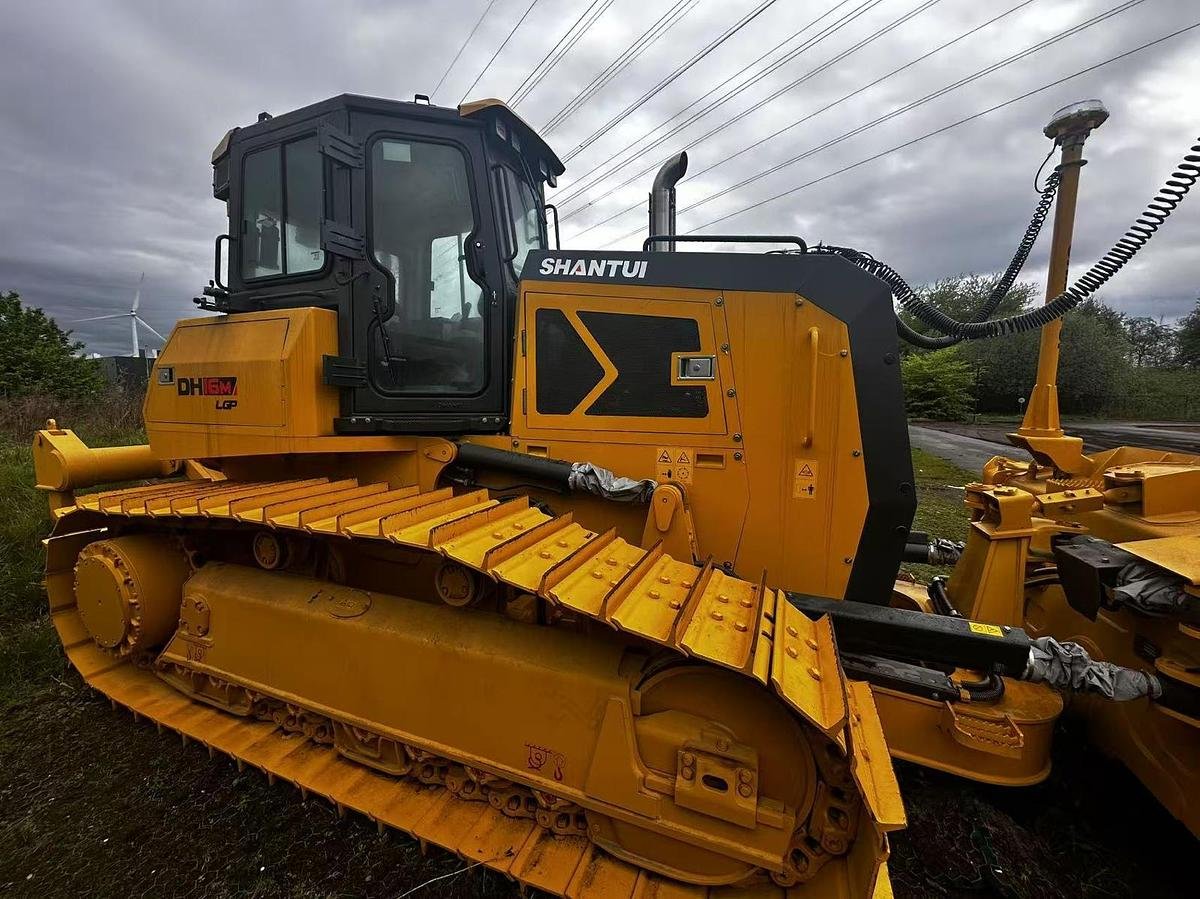

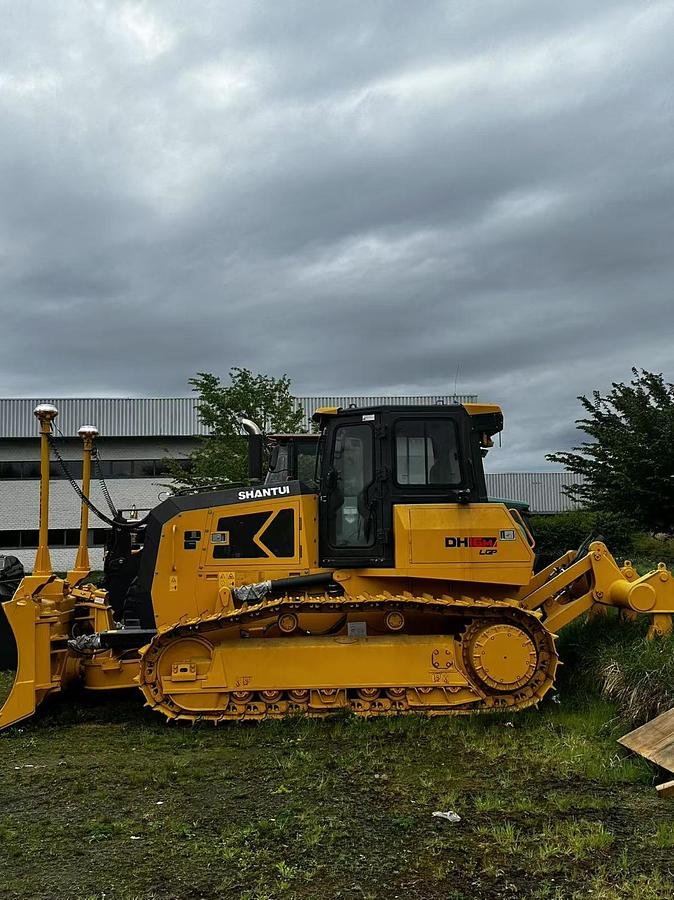

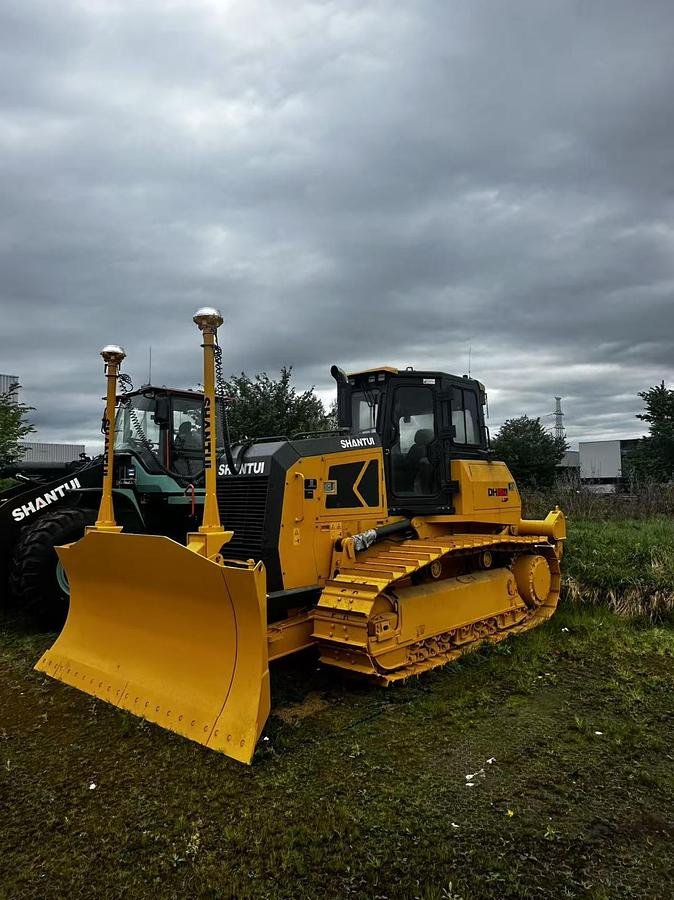

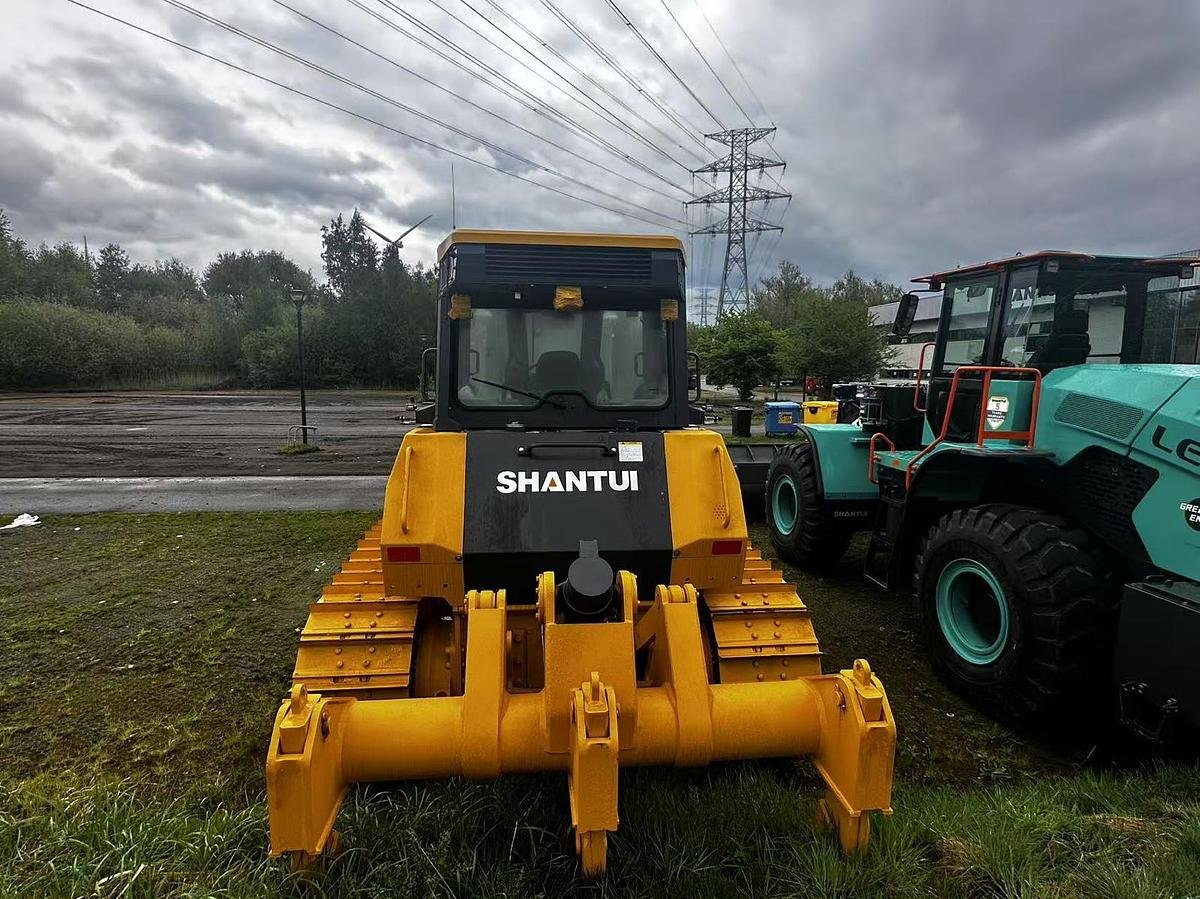

**Highlights of the SD16L:**
- **Drive System:** Shantui’s proprietary drive system is optimally tuned to the engine curve, providing excellent traction and efficient power transmission.
- **Maintenance and Operator Comfort:** Side covers can be opened for easy maintenance. The ergonomically designed, spacious cab offers excellent visibility.
- **Adaptability:** With its wide track contact surface, the bulldozer is particularly suitable for challenging terrain such as wetlands and marshes.
**ENGINE**
- FIAT N67
- Power: 151 kW (202 HP)
- EU Stage V
**DRIVE**
- Independent hydrostatic dual-circuit electric drive
- Travel speed: 0-10 km/h (forward/reverse)
**TANK CAPACITY**
- Fuel tank: 389 l
- Cooling system: 29 l
- Engine oil: 14 l
- Hydraulic oil tank: 115 l
**DIMENSIONS**
- Operating weight: 18,830 kg
- Machine height: 3,180 mm
- Total machine length: 5,800 mm
**Highlights of the SD16L:**
- **Drive System:** Shantui’s proprietary drive system is optimally tuned to the engine curve, providing excellent traction and efficient power transmission.
- **Maintenance and Operator Comfort:** Side covers can be opened for easy maintenance. The ergonomically designed, spacious cab offers excellent visibility.
- **Adaptability:** With its wide track contact surface, the bulldozer is particularly suitable for challenging terrain such as wetlands and marshes.
