Built around the project configuration
Manufacturer: SEBA

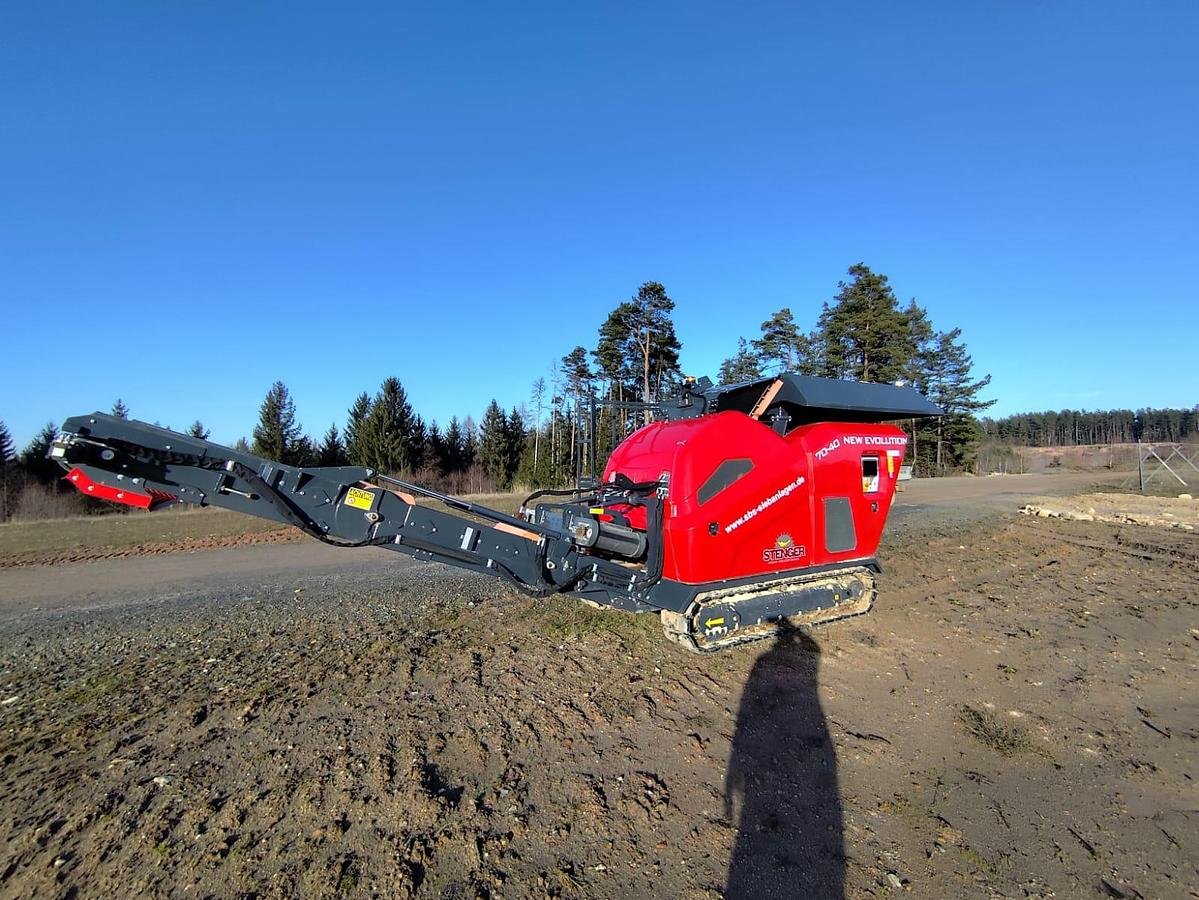

Model: Lite Track 70-40 New Evolution
Year of Manufacture: 2022
Operating hours : 45 h
Technical Specifications
Operating weight: 12,000 kg
Transport length: 5,300 mm
Working length: 8,630 mm
Width: 2,420 mm
Height: 2,750 mm
Engine: Yanmar diesel, 53.7 kW / 850-2,000 rpm
Travel speed: 0.7 - 1.3 km/h
Maximum gradient: 30%
Conveyor belt speed: 1.85 m/sec
Hopper capacity: 2.5 cubic metres
Output capacity: 10 - 45 cubic metres per hour
Jaw opening: 700 x 400 mm
Hydraulic jaw gap adjustment: 15 - 100 mm
Standard Equipment and Features
Vibrating feeder with pre-screening grizzly
Reversible discharge conveyor for pre-screened material
Remote control for all machine movements, including 2 battery packs
Level sensor at crusher inlet

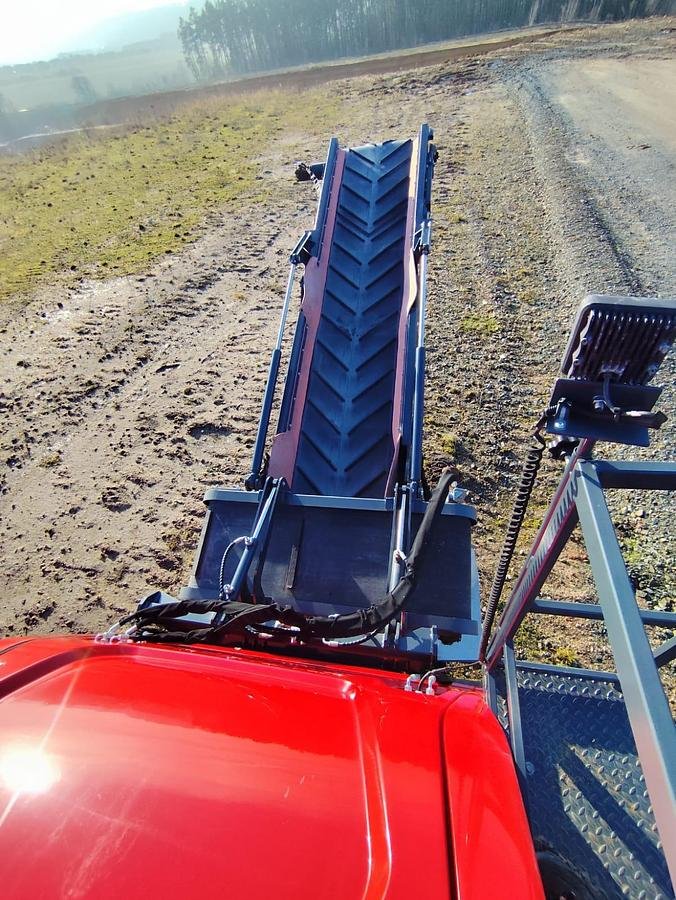

Magnetic separation belt
Anti-dust system
Lighting for night operation
Video camera monitoring at crusher inlet
Central lubrication system
