Built around the project configuration
Manufacturer: Tracto
Model: Grundodrill 15XPT T5 TD73
Year of Manufacture: 2022
Operating Hours: 915
Engine: Cummins EU Stage V, 119 kW for travel and drilling
Pulling and Pushing Force: 160 kN
Torque: 6,500 Nm
Drill Rods: TD73, 3 m length each
Undercarriage: Rubber track with support shield
Remote Control: Radio remote control

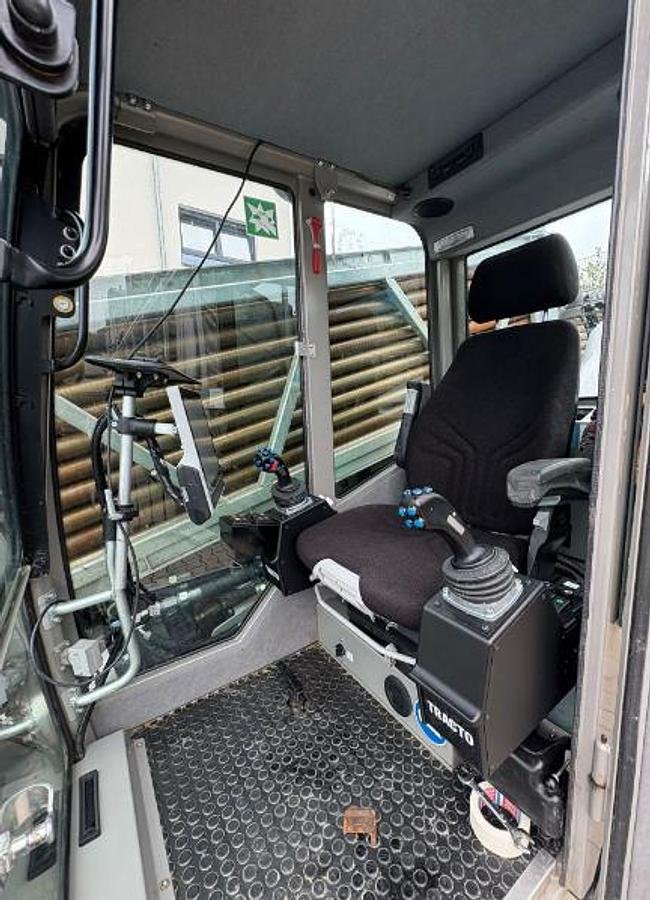

Cab: Spacious cab with comfort seat, joysticks, and touchscreen panel PC
Drilling Mode: Automatic drilling
Rod Box: Fully galvanised
Rod Changing System: Semi-automatic
Clamping and Release: Semi-automatic
Anchoring System: With bentonite collection tray
Bentonite Pump: High-performance HD pump onboard the carriage
Data Transfer: Drill data recording and transmission
High Pressure Cleaner: Onboard
— Measuring Technology
DigiTrak Falcon F5+ System with AF8 Display, DigiTrak Sender FT2, V2 15 inch (F2/F5), Lithium battery.
— Additional Equipment
Rubber-padded steel track upgrade
Front support shield upgrade
Bentonite pump upgrade to 320 l/min
Air conditioning conversion kit
HD cleaning pistol 60 l with lance and 15 m hose
Anchor hammer system including two ground anchors
Bentonite suction pump including 5 m hose
Bentonite drain hose (5 m) for anchor plate
Full automation upgrade
